Winged Carving Tools

Corners-pointing-forward, or 'winged', tools are to me and my type of work not the most useful edge configuration. For nearly all my carving work, I want square corners. However, 'winging' or extending the corners, can improve the performance of some tools in some contexts.

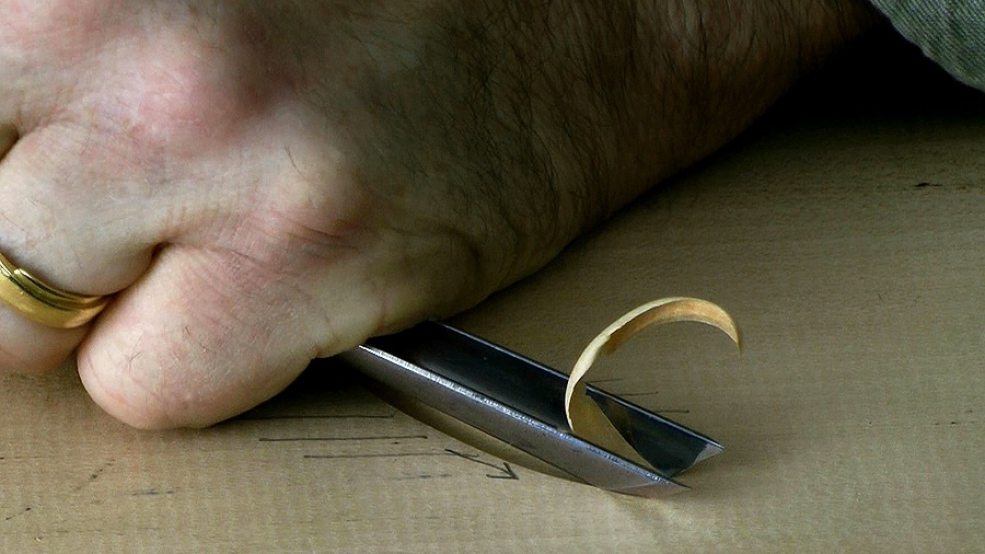

In this lesson I'll demonstrate winged U-shaped gouges and answer, 'What's the point?' It can be a relief for beginners to realise that carvers do not have to be stuck with the tool shapes that come from the factory; they can alter them for certain jobs, and this is an example.

A warning: the advantages of winged tools are limited. See them as specialised. It's good to know about them, but you might never need them.
